MX-1004PF/K Quad-View Video Processor
E teaching bulletin's good helper ! Four picture screens demonstrated what you need.
The MX-1004PF/K Quad-View Video Processor is an advanced video processor for multimedia presentations. It is an ideal solution for applications where up to four video signals must be displayed on a single display. It supports up to 10 video inputs, of which four can be outputted simultaneously with the desired display layout through software control. The advanced video processor allows you to manipulate output images, wherever positions and whatever sizes you want for viewing two computers or two video signals or a combination.

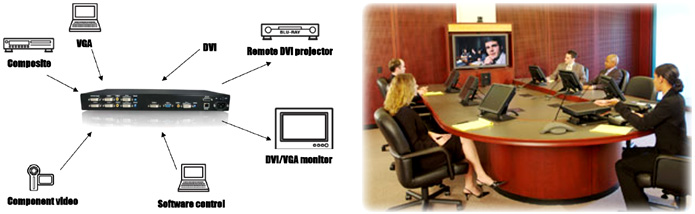

The embedded scaler converts signals from input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). Dual outputs are provided in both analog (VGA) and digital (DVI) format, one is connected to remote display and the other is connected to on-site display for real time monitoring.

MX-1004PF Input :
.29-pin DVI-I x 4
.RGB 15-pin D-sub x 4
.component x 4
.composite x 4
.S-Video x 4

MX-1004PF Output :
.29-pin DVI-I x 1
.RGB 15-pin D-sub x 1


MX-1004PF/K VIDEO

MX-1004PF/K DEMO VIDEO

Features:
Four VGA, three DVI, three component and three composite inputs, from 640x480 to 1920x1200, interlaced or progressive.
Dual outputs (DVI / VGA), 640x480 to 1920x1200.
Can be cascaded to obtain more images.
Image parameters and layouts are automatically saved in flash memory and can be recalled for later use.
Several image parameters and layouts can be saved in computers and can be loaded for later use.
Video parameters adjustable. (brightness, contrast, color temperature, etc.)
User-selectable output settings, up to 1920x1200.
Perfectly as a video screen splitter, a video converter and a video switcher.
Firmware upgradable for support of new features and technology enhancements.
Software control through RS-232, RS-485 over Cat-5.
Automatically power-saving mode.
1U size.

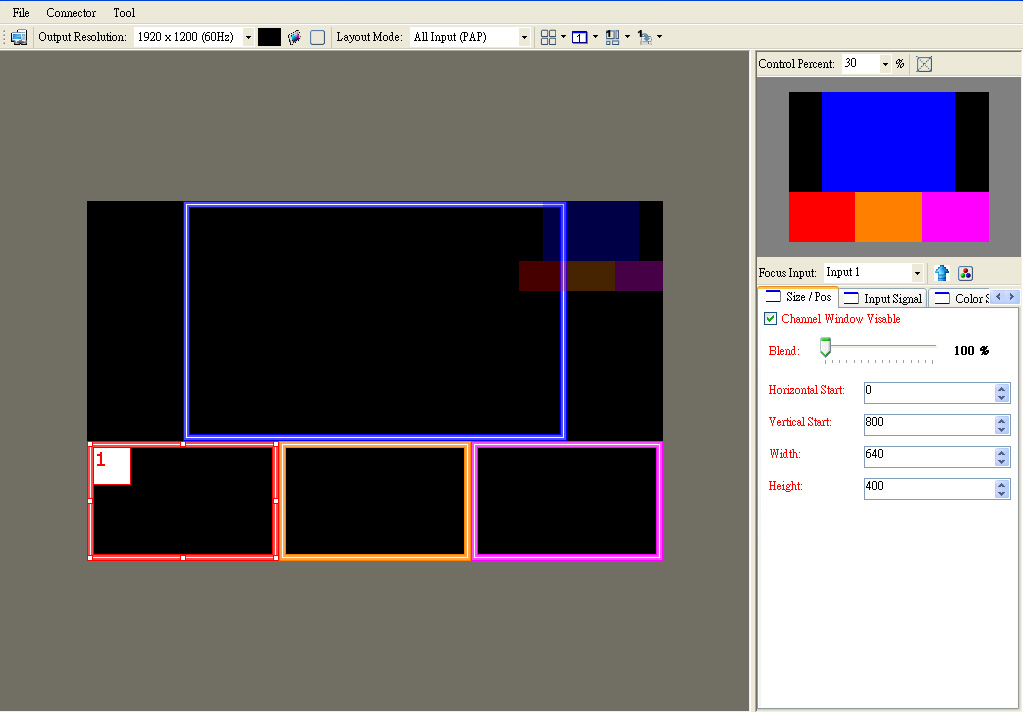

Software Operation:
Resize, position, flip, zoom & pan and blend output video through software as well as titles, borders and colored backgrounds.
Quick setup for full screen display.
Quick setup for PAP mode.
Quad Display mode.
Display area number.
Save Parameters for all channels.


▲ composition (MX-1004PF or MX-1004K)

Multiple Video wall layouts can be saved and re-called :
Big-Images ,Quad-View Video Processor Big-Images 2 ,Quad-View Video Processor
MX-1004PF Panel Bottom Type
MX-1004PF Custom Layout Type
Big-Images 3 ,Quad-View Video Processor Big-Images 4 ,Quad-View Video Processor
MX-1004PF Panel cross
MX-1004PF Panel Left Type
Big-Images 5 ,Quad-View Video Processor Big-Images 6 ,Quad-View Video Processor
MX-1004PF Panel Right Type
MX-1004PF Panel Top Type


Specification :

MX-1004PF front back view
MX-1004K front back view
Accessories

Model

MX-1004PF

MX-1004K

Input

29-pin DVI-I x 4

29-pin DVI-I x 4

RGB 15-pin D-sub x 4

component x 4

component x 4

composite x 4

Composite x 4

S-Video x 4

S-Video x 4

Output

29-pin DVI-I x 1

RGB 15-pin D-sub x 1

Keyboard/ Mouse Input

NO

PS/2 x 2

USB x 4

Control

RS-232, RS-485(RJ-45) (software CD)

Power

100-240V AC 50/60Hz

consumption

35 W

Dimensions

W44 x D30 x H4.4 (cm)

Weight

3800g
