| SB-4144
4x4 VGA + Stereo Audio Matrix Switcher : |
| |
| |
SB-4144 is one of the most
innovative VGA (RGBHV) / Stereo Audio (AR/AL) 4x4 matrix switching
products on the market.
The SB-4144 is a true Matrix Routing Switcher for VGA (RGBHV)
/ Stereo Audio (AR/AL) signals. It supports 4 individual VGA
/ Stereo Audio inputs with 4 individual VGA / Stereo Audio
outputs. Because it is a matrix router, any input may be routed
to any output; or the same input may be routed to all outputs
or any combination. It completely eliminates the need to constantly
move around audio and video input cables and output cables.
The SB-4144 is useful for Matrix signals from VGA source devices
(such as Personal computer, Set Top Box, and Satellite Receivers,
etc.) to VGA destination devices (such as LCD Monitors, VGA
Monitors, Plasma LCD TV, VGA Projectors, etc.). Selection
of inputs can be made via the front panel push buttons, an
infrared remote control unit or RS-232 control by a computer.
|
|
| |
| |
| SB-4144
TYPICAL APPLICATION : |
 4x
VGA-Audio source devices to
4x
VGA-Audio Display |
 |
|
|
| |
SB-4144
INSTALLING : |
|
| |
CONTROL PORTS |
| |
| 1. |
IR REMOTE - IR Remote Controller. |
| 2. |
RS-232 Interface RS-232 interface system. |
|
| |
|
| |
INPUTS 1 ~ 4 PORT VGA SOURCE DEVICE SIGNALS |
| |
| |
VIDEO - VGA (RGBHV), connector
with HD-15p (D-Sub). |
| |
AUDIO - Stereo Audio (AR/AL), Connector
via 3.5mm Ear Phone Jack. |
|
| |
|
| |
OUTPUTS 1 ~ 4 PORT VGA CONNECT TO DISPLAY
MONITOR SIGNALS |
| |
| |
VIDEO - VGA (RGBHV), connector
with HD-15p (D-Sub). |
| |
AUDIO - Stereo Audio (AR/AL), Connector
via 3.5mm Ear Phone Jack . |
|
| |
|
| |
SB-4144
FEATURES : |
| |
1. Supports 4x inputs to 4x outputs VGA + Audio
Matrix Switcher
2. Input signals support via VGA (RGBHV), stereo audio (AR/AL)
3. Output signals support VGA and stereo audio to VGA monitor
display
4. Higher video bandwidth 325MB each path R, G, B signals
5. Supported HD high definition resolutions XGA, SXGA, UXGA,
WSXGA, WUXGA
6. RS-232 serial interface via Ethernet control is optional
7. Compatible with all VGA video monitor devices, plasma display
and projectors
8. Supported RS-232 serial interface protocol commands list
9. Control PC RS-232 drive compatible with win-95/98/2000/xp
10.Various user interface controls:
Attached
Window based control software for desktop or NB control by
RS-232 port
Manual
controlled by front panel button
IR
remote control
11.Supports desktop with ear mount and 19 inch rack mountable
type panel
12.Power supply DC 12Volt, universal type switch 100~230V
AC, 50/60Hz
|
| |
|
| |
SB-4144
SPECIFICATIONS : |
|
| Type
of Switcher |
4 in to 4 out, VGA (RGBHV)+Audio Matrix Switcher |
| I
/ O Signals |
4x
VGA (RGBHV) via HD-15p VGA connector
4x Stereo Audio (AR/AL), via 4x ¢3.5mm
Ear Phone Jack |
| Video
Bandwidth |
325MHz
(-3db), 200mVp-p |
| Video
Supported |
Higher
resolution formats HD 1920x1200 (WUXGA) |
| Audio
Supported |
Stereo
Audio |
| Low
all hostile crosstalk |
-83
db@5MHz |
| Controls |
IR
remote, select buttons on the front panel & RS-232 |
| PC
Control |
RS-232
interface serial via DRV on a PC |
| Gain
control |
60MHz
0.1 db gain flatness |
| Chassis
Material |
Metal
thin=1mm |
| Safety
Approvals |
CE,
FCC, RoHS (2002/95/EC) |
| Dimensions |
482(L)
x 200(W) x 44(H) mm |
| Power
Supply |
DC
12V / 1A~2A (consumption 800mA Max)
100~230V AC 50/60Hz |
| Shipping
Weight |
2.25
Kgs |
|
| |
|
|
| |
|
| |

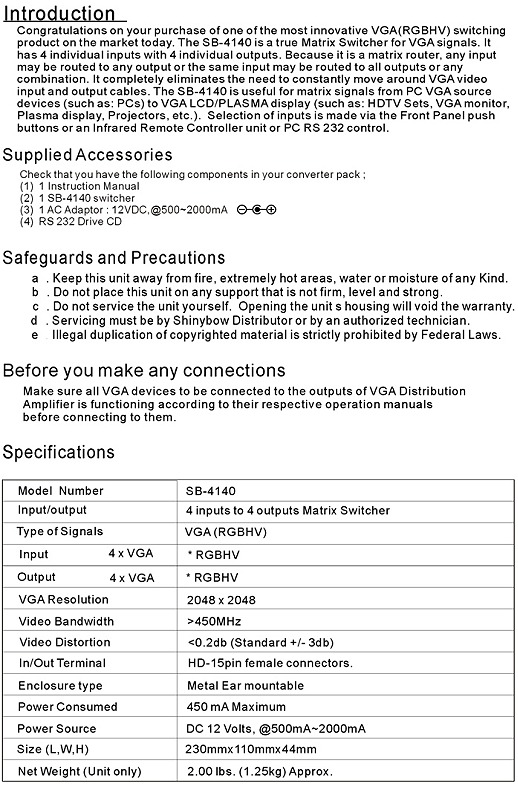

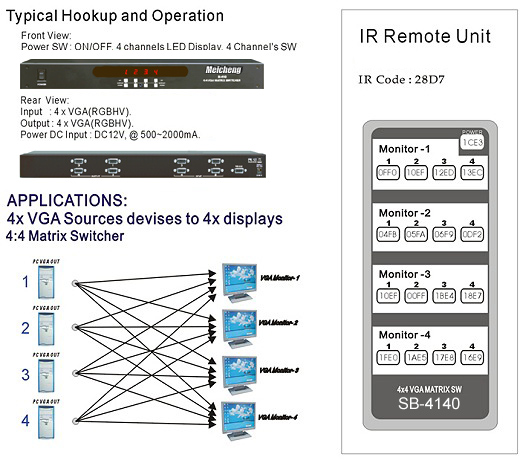

SB-4140 4x4 VGA MATRIX SWITCHER
:
|
|
|
| |
|
| SB-4140
FEATURES : |
1. Supports 4x inputs to 4x outputs
VGA Matrix Switcher
2. Input signals support via VGA (RGBHV)
3. Output signals support VGA to VGA monitor display
4. Higher video bandwidth 325MB each path R, G, B signals
5. Supported HD high definition resolutions XGA, SXGA, UXGA, WSXGA,
WUXGA
6. RS-232 serial interface via Ethernet control is optional
7. Compatible with all VGA video monitor devices, plasma display and
projectors
8. Supported RS-232 serial interface protocol commands list
9. Control PC RS-232 drive compatible with win-95/98/2000/xp
10.Various user interface controls:
Attached
Window based control software for desktop or NB control by RS-232
port
Manual
controlled by front panel button
IR
remote control
11.Supports desktop with ear mount and 19 inch rack mountable type
panel
12.Power supply DC 12Volt, universal type switch 100~230V AC, 50/60Hz.
|
|
| SB-4140- 4
x 4 VGA MATRIX SWITCHER : |
|
| |
SB-4140 VGA matrix switcher especially switches and routs
any pathway of pathway VGA signal, from 4 matrix switcher
sources to 4 matrix switcher acceptors simultaneously. It
features user-friendly front panel dabbing type control
buttons and other remote controllers including RS-232 and
IR remote controller for ease operation.
This unit also includes a breaking scene stabilizing protection
to ensure the routing remains in desired state in the event
of unintentional errors within the system. SB-4140 VGA matrix
switcher is an ideal solution for trade show, boardroom,
conference room, control room, classroom, resort, or entertainment
facility center.
|
|
| |
| SB-4140 INSTALLATION : |
|
| SB-4140 SPECIFICATIONS : |
| Type
of Switcher |
4 in to 4 out, VGA (RGBHV) Matrix Switcher |
| I
/ O Signals |
4x
VGA (RGBHV) via HD-15p VGA connector |
| Video
Bandwidth |
325MHz
(-3db), 200mVp-p |
| Video
Supported |
Higher
resolution formats HD 1920x1200 (WUXGA) |
| Low
all hostile crosstalk |
-83
db@5MHz |
| Controls |
IR
remote, select buttons on the front panel & RS-232 |
| PC
Control |
RS-232
interface serial via DRV on a PC |
| Gain
control |
60MHz
0.1 db gain flatness |
| Chassis
Material |
Metal
thin=1mm |
| Safety
Approvals |
CE,
FCC, RoHS (2002/95/EC) |
| Dimensions |
482(L)
x 200(W) x 44(H) mm |
| Power
Supply |
DC
12V / 1A~2A (consumption 800mA Max)
100~230V AC 50/60Hz |
| Shipping
Weight |
1.96
Kgs |
|
|
| |
|
|
|
| |

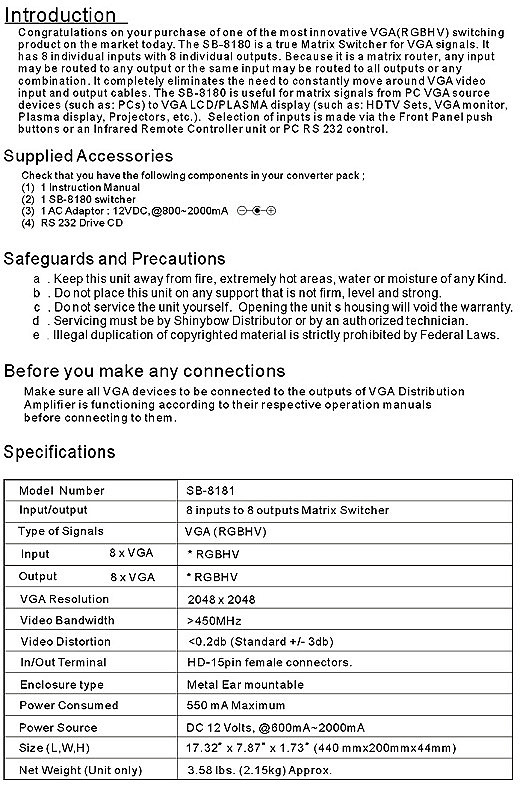

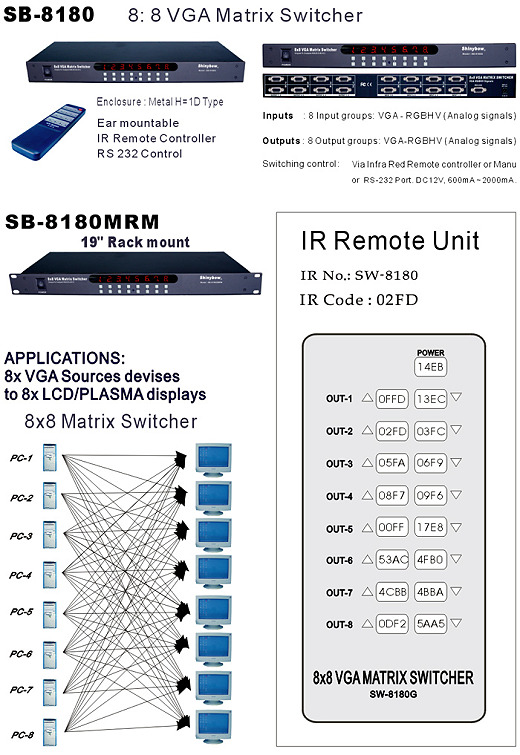

SB-8180 8x8 VGA MATRIX SWITCHER
:
|
|
|
|
|
|
| SB-8180- 8
x 8 VGA MATRIX SWITCHER : |
SB-8180 VGA matrix switcher especially switches
and routs any pathway of pathway VGA signal, from 8 matrix switcher
sources to 8 matrix switcher acceptors simultaneously. It features
user-friendly front panel dabbing type control buttons and other
remote controllers including RS-232 and IR remote controller for
ease operation.
This unit also includes a breaking scene stabilizing protection
to ensure the routing remains in desired state in the event of unintentional
errors within the system. SB-8180 VGA matrix switcher is an ideal
solution for trade show, boardroom, conference room, control room,
classroom, resort, or entertainment facility center. |
| |
| SB-8180 FEATURES : |
1. Supports 8x inputs to 8x outputs VGA (RGBHV) Matrix Switcher
2. Input signals support via VGA (RGBHV)
3. Output Signals support VGA (RGBHV) device of monitor, plasma, LCD
display
4. Higher video bandwidth 325MB each path R, G, B signals
5. Supported HD high definition resolutions XGA, SXGA, UXGA, WSXGA,
WUXGA
6. RS-232 serial interface via Ethernet control is optional
7. Compatible with all VGA video monitor devices, plasma display and
projectors
8. Supported RS-232 serial interface protocol commands list
9. Control PC RS-232 drive compatible with win-95/98/2000/xp
10.Various user interface controls:
Attached
Window based control software for desktop or NB control by RS-232
port
Manual
controlled by front panel button
IR
remote control
11.Supports desktop with ear mount and 19 inch rack mountable type
panel
12.Power supply DC 12Volt, universal type switch 100~230V AC, 50/60Hz |
| |
| SB-8180 SPECIFICATIONS : |
| Type
of Switcher |
8 in to 8 out, VGA (RGBHV) Matrix Switcher |
| I
/ O Signals |
8x
VGA (RGBHV) via HD-15p VGA connector |
| Video
Bandwidth |
325MHz
(-3db), 200mVp-p |
| Video
Supported |
Higher
resolution formats HD 1920x1200 (WUXGA) |
| Low
all hostile crosstalk |
-83
db@5MHz |
| Controls |
IR
remote, select buttons on the front panel & RS-232 |
| PC
Control |
RS-232
interface serial via DRV on a PC |
| Gain
control |
60MHz
0.1 db gain flatness |
| Chassis
Material |
Metal
thin=1mm |
| Safety
Approvals |
CE,
FCC, RoHS (2002/95/EC) |
| Dimensions |
482(L)
x 200(W) x 44(H) mm |
| Power
Supply |
DC
12V / 2A (consumption 1.2A Max)
100~230V AC 50/60Hz |
| Shipping
Weight |
3.15
Kgs |
|
| |
| SB-8180 INSTALLATION : |
|
|
|
|
|
|
| |
| |

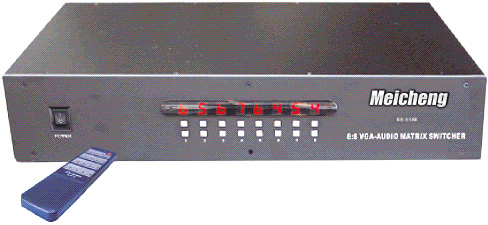

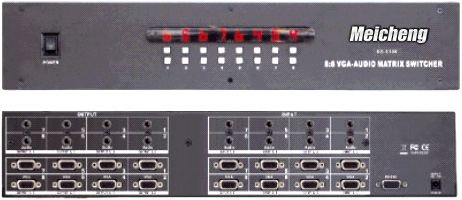

SB-8188
8x8 VGA+AUDIO MATRIX SWITCHER
:
|
|
|
|
| |
The 8x8 VGA + Stereo Audio
Matrix Switcher with RS-232 is designed to work as a switcher for
multiple VGA sources and displays. Switch is controlled via RS232,
IR Remote or Push Button on the front panel. A maximum bandwidth
of 380MHz will support a sharp and highly defined video in multiple
resolutions of up to 1920x1200. Because it is a matrix switcher,
it allows any input to be routed to any output; or the same input
to be routed to all outputs or any combination. It completely eliminates
the need to constantly move around video input and output cables. |
|
| SB-8188
FEATURES : |
1. Supports 8x inputs to 8x outputs VGA + Audio
Matrix Switcher
2. Input signals support via VGA (RGBHV), stereo audio (AR/AL)
3. Output signals support VGA and stereo audio to VGA monitor display
4. Higher video bandwidth 325MB each path R, G, B signals
5. Supported HD high definition resolutions XGA, SXGA, UXGA, WSXGA,
WUXGA
6. RS-232 serial interface via Ethernet control is optional
7. Compatible with all VGA video monitor devices, plasma display and
projectors
8. Supported RS-232 serial interface protocol commands list
9. Control PC RS-232 drive compatible with win-95/98/2000/xp
10.Various user interface controls:
Attached
Window based control software for desktop or NB control by RS-232
port
Manual
controlled by front panel button
IR
remote control
11.Supports desktop with ear mount and 19 inch rack mountable type
panel
12.Power supply DC 12Volt, universal type switch 100~230V AC, 50/60Hz |
| |
| |
| SB-8188
SPECIFICATIONS : |
| Type
of Switcher |
8 in to 8 out, VGA (RGBHV)+Audio Matrix Switcher |
| I
/ O Signals |
8x
VGA (RGBHV) via HD-15p VGA connector
8x Stereo Audio (AR/AL), via 1x ¢3.5mm
Ear Phone Jack |
| Video
Bandwidth |
325MHz
(-3db), 200mVp-p |
| Video
Supported |
Higher
resolution formats HD 1920x1200 (WUXGA) |
| Audio
Supported |
Stereo
Audio |
| Low
all hostile crosstalk |
-83
db@5MHz |
| Controls |
IR
remote, select buttons on the front panel & RS-232 |
| PC
Control |
RS-232
interface serial via DRV on a PC |
| Gain
control |
60MHz
0.1 db gain flatness |
| Chassis
Material |
Metal
thin=1mm |
| Safety
Approvals |
CE,
FCC, RoHS (2002/95/EC) |
| Dimensions |
482(L)
x 200(W) x 88(H) mm |
| Power
Supply |
DC
12V / 2A (consumption 800mA Max)
100~230V AC 50/60Hz |
| Shipping
Weight |
3.25
Kgs |
|
| |
| SB-8188
INSTALLATION : |
|
|
|
|
 |
