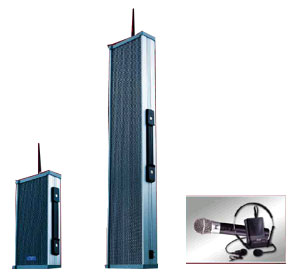

UHF PLL 16 CH. AUTO TRACKING WIRELESS
COLUMN AMPLIFIER SYSTEM
GPA-366WU ( 1 CH./ 20 W)
GPA-566WU (2 CH./ 40W)
System Features
- UHF band PLL
synthesized system with preprogrammed 16 selectable frequencies makes
it easy to choose non-interference channels.
- Ergonomic &
visually design with aluminum alloy structure, elegant shape with
high efficiency strong output.
- Incorporated
with built-in amplifier, speaker and wireless(wired) microphone system
,
easy to set up for various applications.
- Built-in rechargeable
battery with safely device for long-lasting battery life.
- Can be used in
combination, enhances wider sound efficiency and output on wireless
basis.
- Portable, can
be hung on a wall or used with a tripod.
- Compatible with
handheld microphone EJ-801TS or body pack transmitter EJ-8LT for various
needs.
- Receiver module
featuring auto tracking function,when receiver setting on Ch.0, it
would automatically track and lock the transmitter operating channel.
- Great for large
events: Conferences, Seminars, Auction, PA broadcasting.....
- R&TTE . CE
. FCC approvals
Specification
Wireless Overall
System
|
Oscillation
Type :
|
PLL synthesized control OSC |
|
Carrier
frequency range:
|
UHF
740 ~ 865 MHz (according to regulation) |
|
Adjustable
frequencies:
|
pre-programmed
16 auto tracking or
switchable frequencies |
|
Switching
bandwidth:
|
max.
12 MHz |
|
Maximum
deviation:
|
-10¢J
~ 50¢J |
|
Dynamic
range:
|
50 kHz, with level limiting |
|
T.H.D.:
|
100
dB |
|
Pre/De-
emphasis:
|
<
1 % (at 10 kHz Deviation) |
|
Pre/De-
emphasis
|
50
£gs |
|
squelch
|
tone
key and noise lock dual-squelch |
|
Frequency
response:
|
90
Hz ~ 17 kHz |
|
Operating
range:
|
30
~ 60 M (opening field) |
GPA-366WU ( 1 CH./ 20 W)
|
Output
power:
|
Max. 20W @ 4 £[ |
|
Power
requirements:
|
115V
/ 230V AC adaptor 15V DC,1A
external DC 12 ~ 16 V |
|
Battery
|
12V
/ 1.3A (rechargeable, sealed Ni-MH) |
|
Frequency
response:
|
100
Hz ~ 12 kHz |
|
Total
Harmonic Distortion:
|
Less
than 1 % (at rated output) |
|
Signal-to-Noise
Ratio:
|
>70 dB (at rated output) |
|
Input:
|
MIC
x 1 |
|
Output:
|
AUX
x 1 |
|
Controls:
|
Power
/ Wireless, MIC, AUX, TONE |
|
Antenna:
|
TNC
connector helical antenna |
|
Audio
Input
|
RCA |
|
Dimension
|
100(w)
x 300(h) x 145(d)mm |
|
Weight
|
2.6
kg |
|
Recharging
time:
|
3
~ 4 hours |
|
Battery
operating time:
|
4
~ 6 hours (continuous operation) |
|
Speaker
stand Optional:
|
table
stand (ST-35), floor stand (ST-56) |
|
Mounting
rack Optional:
|
SP-56 |
GPA-566WU (2 CH./ 40W)
|
Output
power:
|
Max. 40W @ 4 £[ x 2 |
|
Power
requirements:
|
115V
/ 230V AC adaptor 15V DC,2A
external DC 12 ~ 16 V |
|
Battery
|
12V
/ 2.9A (rechargeable, sealed lead-acid ) |
|
Frequency
response:
|
100
Hz ~ 12 kHz |
|
Total
Harmonic Distortion:
|
Less
than 1 % (at rated output) |
|
Signal-to-Noise
Ratio:
|
>70 dB (at rated output) |
|
Input:
|
MIC
x 1 |
|
Output:
|
AUX
x 1 |
|
Controls:
|
Tone,
Channel A & Channel B Power , Volume , MIC Volume, Master Power. |
|
Antenna:
|
TNC
connector helical antenna |
|
Audio
Input
|
RCA |
|
Dimension
|
100(w)
x 660(h) x 145(d)mm |
|
Weight
|
5
kg |
|
Recharging
time:
|
4
~ 8 hours |
|
Battery
operating time:
|
5
~ 8 hours (continuous operation) |
|
Speaker
stand Optional:
|
table
stand (ST-35), floor stand (ST-56) |
|
Mounting
rack Optional:
|
SP-56 |
EJ-8LT Body-Pack
Transmitter
|
Mike:
|
condenser mic. |
|
RF
output:
|
10
mW (according to regulation) |
|
Spurious
emission:
|
less
then 250 nW |
|
Battery:
|
1.2
V ( Ni-MH.1300 mAH ) x2 AA type
rechargeable battery
1.5 V x2 AA Alkaline disposable |
|
Battery
life Ni-MH. rechargeable:
|
10
hours typical |
|
Battery
life Alkaline disposable:
|
17 hours typical |
|
Dimensions
(LxWxH):
|
92
x 65 x 25 mm |
|
Weight
with battery:
|
128
g |
EJ-801TS Handheld
Microphone
|
Mike:
|
dynamic mic. or condenser mic.(option) |
|
Antenna:
|
built-in |
|
RF
output:
|
10
mW (according to regulation) |
|
Spurious
emission:
|
less
then 250 nW |
|
Battery:
|
1.2
V ( Ni-MH.1300 mAH ) x2 AA type
rechargeable battery
1.5 V x2 AA Alkaline disposable |
|
Battery
life Ni-MH. rechargeable:
|
10
hours typical |
|
Battery
life Alkaline disposable:
|
17 hours typical |
|
Dimensions
(Dia x L):
|
51
x 237 mm |
|
Weight
with battery:
|
285
g |
Shipping Information
|
Packing
dimension
|
Packing
weight
|
|
22(W)
x 17(H) x 81.5(D) cm
|
6.8kg
|
|
Carton
dimension (4 pack)
|
Carton
weight
|
|
(W)
x (H) x (D) cm
|
kg
|
|
