| EJ-880T |
IN-EAR Monitor Transmitter |
|

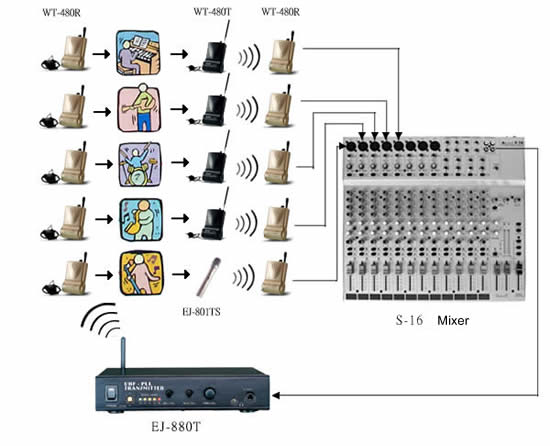

SYSTEM FEATURE
- With UHF
PLL 16 preprogramed selectable frequencies, the mini receiver
with wireless transmitter can provide inear monitoring for the
performance on stage.
- The system
provides the highest audio qulity, interference-free transmission
reliablity.
- 1/2 19"
EIA standard rack mountable case. Combine two transmitters in
a 19" rack by using optional rack mount kit.
- Feature
a 6.3 mm mic. input and a XLR balanced input for varicus audio
compatibility.
- Top audio
quality is assured by low noise circuitry and a sophisticated
audio processor.
|
WT-480R Receiver(3V)
with built-in, hidden super thin speaker with volume control, Phone
out jack for applicable with earphone for listening.
Specification
Wireless
Allover System
|
Oscillation
Type :
|
PLL synthesized control OSC |
|
Carrier
frequency range:
|
UHF
740 ~ 865 MHz (according to regulation) |
|
Adjustable
frequencies:
|
pre-programmed
16 auto tracking or
switchable frequencies |
|
Switching
bandwidth:
|
max.
12 MHz |
|
Maximum
deviation:
|
-10˘J
~ 50˘J |
|
Dynamic
range:
|
>80dB |
|
T.H.D.:
|
<1% |
|
Pre/De-
emphasis
|
50
Łgs |
|
Frequency
response:
|
150
Hz ~ 10 kHz |
|
Operating
range:
|
70
~ 100 M (opening field) |
EJ-880T IN-EAR Monitor
Transmitter
|
RF
output:
|
10 ~ 50 mW (according to regulation) |
|
Antenna:
|
TNC
connector helical antenna |
|
Audio
Inputs:
|
6.35
mm jack plug, bal. 3-pin XLR, RCA jack |
|
Audio
outputs:
|
6.35
mm and 3.5 mm Jack plug for
stereo earphone |
|
Output
level:
|
0
dBv |
|
Audio
metering:
|
5-LED string |
|
Power
requirements:
|
115V
/ 230V AC adaptor 12V DC,500mA |
|
Dimensions
(DxWxH):
|
215
x 220 x 44 mm |
|
Weight:
|
1.2
Kg |
WT-480R Receiver
|
Receiving
mode:
|
PLL single-channel receiving |
|
Sensitivity:
|
4
Łg V (at 20dB SINAD) |
|
Double
intermediate:
|
70.7
MHz and 10.7 MHz |
|
Audio
level:
|
0
dBv |
|
Earphone
connector:
|
3.5 mm jack socket, for mono (built-in hidden speaker) or stereo
without speaker |
|
Battery
life Ni-MH. rechargeable:
|
9
hours typical |
|
Battery
life Alkaline disposable:
|
16
hours typical |
|
Dimensions
(DxWxH):
|
92
x 65 x 25 mm |
|
Weight
with battery:
|
130
g |
|
