WT-2400 Series Light Weight Wireless Tour Guide System

 WT-2400 Series Light Weight Wireless Tour Guide System offers the perfect solution for performers, musicians , tour staffs and simultaneous interpreters. The system included light and portable type transmitter (WT-2400T) and light and portable type receiver (WT-2400R). It adopts UHF channel frequency of synthesizer design enable to select multi-channel and let users to distinguish and operate easily through LCD panel display.


WT-2400T
WT-2400R
Application Instance :
One transmitter can match limitless receivers.
Tour guide in museums, exhibition, temple and church etc.
Visiting in factories, language teaching and applying in hearing impairment.
Operating in stadium, gym, hospital and tourism.
Physical education training or education training.
Using wireless earphone and simultaneous record in class.
Audiovisual teaching, multi-language simultaneous translation in conference.
Violin playing, international conference hall and taking the photograph.
Operating wireless audio transmission system on TV.
Taking the photograph for speech or using in long distance.
Presenting videos or audio recording.
High quality without noise, suiting for amateur and occupation.

WT-2400T Wireless portable transmitter :
3.5mm MIC. Input Jack and 3.5mm Line Input Jack.
Front panel support lock function: To prevent inadvertently touch button while using.
Support volume adjusting and microphone mute function.
Belt clip for carrying easily; also attached the neck strap.
Two charging method: Charging by USB port or Charging contacts by charging case, without bothering to take out the battery.
WT-2400T 無線攜帶型發射器
WT-2400R  Wireless portable receiver :
3.5mm Ear Output Jack for using the external headset.
Front panel support lock function: To prevent inadvertently touch button while using.
Support volume adjusting and SQL function.
Belt clip for carrying easily; also attached the neck strap.
Two charging method: Charging by USB port or Charging contacts by charging case, without bothering to take out the battery.
WT-2400R 無線攜帶型接收器
GB001 48 Units USB Charger (48 Slot) :
Charging number:48 pieces(Transmitter/ Receiver)
Charging Time:6 hrs. (Each USB output port : 100mA)
Safe security features: It will be off automatically when full power.
Power supply:DC 5.8V,6Ah.
Dimension::303(W)X33.5(L)X87(H) mm.
GB001 48組USB充電器

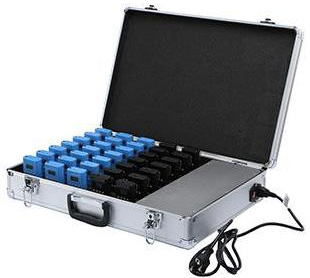

HDC35 Charger suitcase(35 Slot) :
Charging number:35 pieces.(Transmitter/ Receiver)
Charging Time:3〜4 hrs. (800mAh)
Safe security features: While charging, the LED lights shows red./ Fully charged, LED lights off.
Input:AC100~240V / 1.2 Ah
HDC35 手提充電箱

Application 1 :
WT-2400T Application

Application 2 :
WT-2400
FEATURES :
Support frequency select, around 47 channel can use.
Low battery alarm.
RF Strength gauge.
Mute Function (Transmitter ).
SQL Function (Receiver)
Panel lock. Support channel locked.
Two charging type : Charging by USB port or Charging contacts.
No antenna designed, support distance 150 m. (Open ground/without interference)

Specifications :
WT-2400T
Modulation FM, PLL.
Wave band 794-915MHz (Depend on radio wave law in every country).
Default frequency number Around 47 (794~806 MHz) / Around 60 (902~915MHz).
RF Output Power 10 dBm.
Sensitivity -115 dBm
Control Mode Power switch, Channel select, Volume control, Lock, SQL.
S/N ratio >60 db.
Frequency response 40~15,000 Hz.
Deviation ±100 kHz.
MIC. Input type 3.5mm mono connector.
Battery Life 17 hours (Average).
Battery Type NI-MH AA 1.2V / 2000mAh.
Dimension
75mm x 50mm x 25mm.
Weight 45g (without battery).

WT-2400R
Modulation 794-915MHz (Depend on radio wave law in every country).
Wave band Around 47 (794~806 MHz) / Around 60 (902~915MHz).
Default frequency number 10 dBm.
RF Output Power -115 dBm.
Sensitivity Power switch, Channel select, Volume control, Lock, SQL.
Control Mode >60 db.
S/N ratio 40~15,000 Hz.
Frequency response ±100 kHz.
Audio Output type 3.5mm Dummy Stereo connector.
Battery Life 17 hour s(Average).
Battery Type NI-MH AA 1.2V / 2000mAh.
Dimension
75mm x 50mm x 25mm.
Weight 45g (without battery).

Optional Accessory :

Clip microphone (Directional)

Recharge battery

Single-sided headphone
Ear-hook microphone
Hose microphone
