三音路三單體喇叭:8"×1(BASS)2.5"×1(MIDDLE)1"×1(TREELE)
|
． |
頻率響應:48HZ-18KHZ ／分貝:90dB
1W/1M |
． |
額定功率:80WATTS |
． |
阻抗負載:8Ω |
． |
瞬間功率:120WATTS
PEAK |
． |
淨重:6.3KGS每只，分頻點:3.5KHZ |
． |
音箱體積:446×278×232mm(W×H×D) |
| |
|
|
|
|
|
Audio
King AK-510 (監聽喇叭)： |
|
| |
| |
|
| ． |
二音路二單體
喇叭:8"×1(BASS)2.5"×1(MIDDLE)1"×1(TREELE)
|
| ． |
頻率響應:48HZ-18KHZ ／分貝:90dB
1W/1M |
| ． |
額定功率:80WATTS／阻抗負載:8Ω
|
| ． |
瞬間功率:100WATTS PEAK |
| ． |
淨重:6.3KGS(每只)，分頻點:3.5KHZ |
| ． |
音箱體積:446×278×232mm(W×H×D) |
| ． |
AK-510為黑色
; AK-510W為白色 |
|
|
|
|
|
| |
| |
|
| ． |
三音路喇叭5.25"×2(BASS)1"×1
(TREELE) |
| ． |
分頻點:3.5KHZ，頻率響應:55HZ-20KHZ
|
| ． |
分貝:89dB
1W/1M／阻抗負載:4Ω
|
| ． |
承載率: 50WATTS |
| ． |
淨重:6.7KGS |
| ． |
音箱體積:170×503×222mm(W×H×D) |
| |
|
|
|
|
|
Audio
King AK-801M (監聽喇叭)
(*停產)： |
|
| |
| |
|
| ． |
三音路喇叭:8"×1(BASS)1"×2(TREELE)
|
| ． |
分頻點:3.5KHZ，頻率響應:48HZ-18KHZ
|
| ． |
分貝:90dB
1W/1M，阻抗負載:8Ω |
| ． |
額定功率:80WATTS，淨重:6.3KGS.(每只) |
| ． |
瞬間功率:120WATTS
PEAK |
| ． |
音箱體積:446×278×232mm(W×H×D) |
| |
|
|
|
|
|
|
| |
| |
|
| ． |
三音路喇叭:12"×1(BASS) |
| ． |
號角中音×1(MIDDLE)號角高音×1(TREELE)
|
| ． |
分頻點:1.3KHZ,4.5KHZ
／ 頻率響應;50HZ-20KHZ
|
| ． |
分貝:98dB 1W/1M，額定功率:250WATTS |
| ． |
瞬間功率:500WATTS
PEAK |
| ． |
阻抗負載:8Ω，淨重:22KGS (每只) |
| ． |
音箱體積:400×615×370mm(W×H×D) |
|
|
|
|
| |
|
Audio
King S-550 (舞台喇叭) (*停產)： |
|
| |
| |
|
| ． |
三音路喇叭:15"×1(BASS) |
| ． |
號角中音×1(MIDDLE)號角高音×1(TREELE)
|
| ． |
分頻點:1.5KHZ,5KHZ，頻率響應:45HZ-20KHZ
|
| ． |
分貝:100dB 1W/1M，阻抗負載:8Ω
|
| ． |
瞬間功率:800WATTS
PEAK／額定功率:400WATTS
|
| ． |
淨重:35KGS (每只) |
| ． |
音箱體積:490×785×420mm(W×H×D) |
| |
|
|
|
|
|
|
Audio
King AK-1201H (*停產)： |
|
| |
| |
|
| ． |
四音路喇叭
12"×1(BASS) |
| ． |
5.5"×1(MIDDLE)1"×2(TREELE)
|
| ． |
分頻點:2.5KHZ-5.5KHZ／頻率響應:40HZ-20KHZ
|
| ． |
分貝:97dB／阻抗負載:8Ω |
| ． |
額定功率:150WATTS／瞬間功率:200WATTS
PEAK |
| ． |
淨重:26.5KGS (每只) |
| ． |
音箱體積:420×820×350mm(W×H×D) |
|
|
|
|
Audio

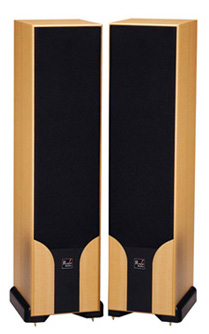

King RA-8802 (家庭劇院與歌唱喇叭之主喇叭)
(*停產)： |
|
| |
| |
|
| ． |
四音路喇叭:8"×2(BASS)
5.25"×2(MIDDLE)1"×2(TREELE) |
| ． |
分頻點:800HZ,3.5KHZ |
| ． |
頻率響應:40HZ-20KHZ
|
| ． |
分貝:90dB 1W/1M／阻抗負載:8Ω |
| ． |
承載功率:60-180WATTS，淨重:21.5KGS |
| ． |
音箱體積:242×1100×310mm(W×H×D) |
| |
|
|
|
|
|
Audio
King RA-552S (輔助喇叭)
(*停產)： |
|
| |
| |
|
| ． |
二音路喇叭:5.25"×2(BASS)1"×1
(TREELE) |
| ． |
頻率響應:55HZ-20KHZ |
| ． |
分頻點:3.5KHZ，分貝:89dB
1W/1M |
| ． |
阻抗負載:4Ω／承載功率:50-90WATTS |
| ． |
淨重:5KGS
(每只) |
| ． |
音箱體積:203×370×170mm(W×H×D) |
| |
|
|
|
|
|
Audio
King RA-808 (桌上型喇叭)
(*停產)： |
|
| |
| |
|
| ． |
三音路喇叭:8"×2(BASS)
|
| ． |
號角: 1"×2(TREELE)／分頻點:4.0KHZ
|
| ． |
頻率響應:45HZ-21KHZ
／分貝:88dB
1W/1M |
| ． |
阻抗負載:4Ω／承載功率:20-140WATTS
|
| ． |
淨重:16.1KGS
(每只) |
| ． |
音箱體積:300×600×370mm(W×H×D) |
| |
|
|
|
|
|
Audio

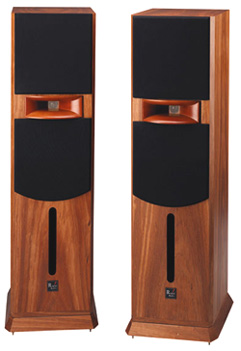

King RA-828(古典劇院喇叭)
(*停產)： |
|
| |
| |
|
| ． |
三音路喇叭:8"×2(BASS)號角:
1"×2(TREELE) |
| ． |
分頻點:3.5KHZ／頻率響應:45HZ-21KHZ
|
| ． |
分貝:91dB
1W/1M，阻抗負載:4Ω
|
| ． |
承載功率:30-150WATTS ／瞬間率:180W
ATTS PEAK |
| ． |
淨重:33.
5KGS (每只) |
| ． |
音箱體積:300×1100×370mm(W×H×D) |
| |
|
|
|
|
|
Audio
King AK-1005(高音質喇叭)
(*停產)： |
|
| |
| |
|
| ． |
5音路喇叭:10"×2(BASS)4"×1(MIDDLE)1"×2(TREELE) |
| ． |
分點:1.5KHZ,4.5KHZ／頻率響應:42HZ-20KHZ
|
| ． |
分貝:92dB
1W/1M／阻抗負載:5Ω
|
| ． |
瞬間功率:250W ATTS PEAK |
| ． |
額定功率:150WATTS／淨重:27KGS
(每只) |
| ． |
音箱體積:325×1090×316(W×H×D)。 |
| |
|
|
|
|
|
|
